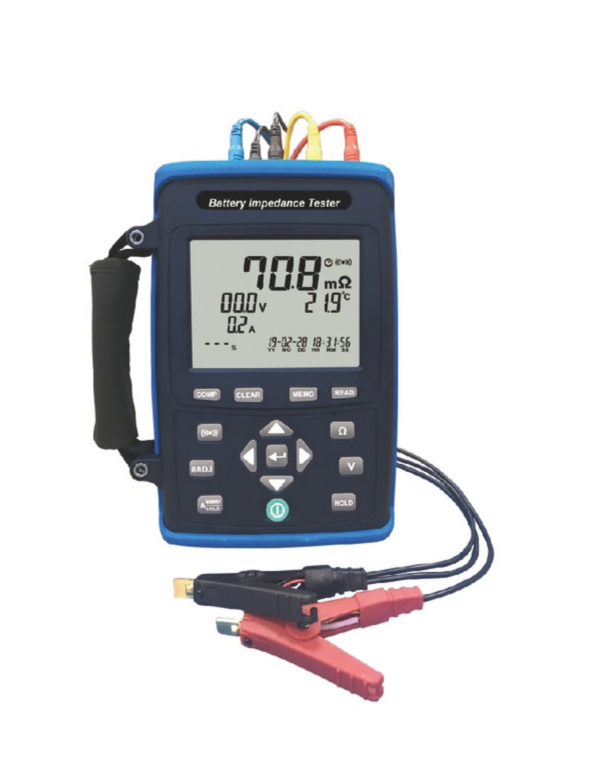

CVMS-6001 Battery Impedance Meter
CVMS-6001 Battery Impedance Meter
-
Measuring method：Impedance (AC four-terminal method).
-
A/D conversion: Dual slope method.
Features
The Battery Tester is designed for measuring the internal impedance and open circuit voltage of the secondary battery including Nickel-metal hydride battery ( NiMH),Nickel-cadmium battery(NiCd),Lithium-ion battery(Li-ion), Alkaline battery and lead-Acid battery.
AC four-terminal method to measure the internal impedance by eliminating lead impedance and contact impedance to get the accurate results.
Multi-display to show the internal impedance, voltage and clock of the battery simultaneously.
It has 99 sets of composite comparator function, which can be set at impedance and voltage values to get the reliable detection of battery deterioration.
Pin type leads, which can easily contact the battery electrodes supplied as standard to get more accurate 4-terminal measurement.
Specifications
-
Display：LCD display and LEDs (comparator output).
-
Sampling rate:2 Second.
-
Open-Circuit terminal voltage: 7.0Vp-p max.
-
Input over range: the screen displays “OL”.
-
Low battery detection: the screen displays “
”. -
Auto power off: The meter will turn off automatically after about 15 minutes of inactivity, allows user to set the inactive time (01〜99 minutes).
-
Comparator settings: High and Low limits of the comparators impedance and voltage.
-
Number of comparator settings: 99 sets.
-
Manual and auto continuous Data logging: 9999 sets.
-
Dimension: 240mm(L)x170mm(W)x66mm(H).
-
Weight:about 1500g. (Including battery)
|
Resistance measurements
|
|||
|
•Temperature coefficient ：±(0.1％ rdg+0.5digits)/℃.
•Measurement current frequency：1KHZ±30HZ.
•Measurement open-circuit terminal voltage：7Vp-p
|
|||
|
Range
|
Resolution
|
Measurement current
|
Accuracy
|
|
4mΩ
|
1μΩ
|
150m A approx.
|
±(1％ reading+20digits)
|
|
40mΩ
|
10μΩ
|
150m A approx.
|
±(0.8％reading＋10digits)
|
|
400mΩ
|
100μΩ
|
50m A approx.
|
|
|
4Ω
|
1mΩ
|
15m A approx.
|
|
|
40Ω
|
10mΩ
|
1.5m Aapprox.
|
|
|
400Ω
|
100mΩ
|
150μ A approx.
|
|
|
Voltage Measurements
|
||
|
Temperature coefficient:(±0.1％ rdg ±0.5digits)/°C
|
||
|
Range
|
Resolution
|
Accuracy
|
|
6V
|
1mV
|
±(0.1％ reading＋6digits)
|
|
60V
|
10mV
|
|
|
Temperature measurement
|
||
|
Measurement Range
|
Resolution
|
Accuracy
|
|
-20°C~60°C
-4°F~140°F
|
0.1°C
0.1°F
|
±1.0°C
±1.8°F
|
|
External T10 adapter and K-Type temperature measurement
|
||
|
Measurement Range
|
Resolution
|
Accuracy
|
|
0°C~400°C
32°F~752°F
|
0.1°C
0.1°F
|
±2.0°C
±3.6°F
|
|
DC Current (DCA) measurement (optional TM-11004)
|
|||
|
Range
|
Sensitivity
|
Resolution
|
Accuracy
|
|
700A
|
0.6A〜700.0A
|
0.1A
|
±(2.0％ reading+5digits)
|
Accessories
- User’s Manual
- Kevin Clip type leads with temperature sensor
- Pin type leads
- AC100~240V 9V/1A(5.5*2.1*1.0mm) switching transformer
- 1.5 V – LR6 – AA – AM3 – MN 1500.
- Carrying Case
- 5-pin USB cable
- Installation CD
