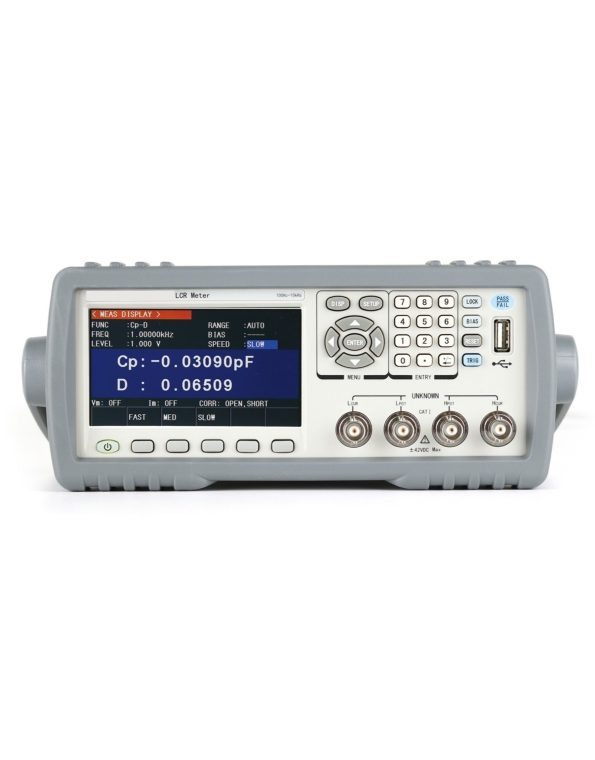

CVMS2810B+

Features

■ 100Hz,120Hz,1kHz,10kHz 4 typical test frequencies

■ 4.3 inch TFT liquid crystal display, Chinese and English optional operation interface

■ 6-digit reading resolution

■ Maximum test speed:12.5ms, support low frequency and high speed:TX4+3ms

■ 10 bins sorting, test sorting is more perfect

■ 100 sets of LCRZ instrument setting files, 10 measurements

■ Soft power switch

■ Support 110V/220V two power supply voltages

■ 10-point list sweep, support multi-frequency test sorting

■ Ultra-low signal source output offset (<100μV), meeting the needs of large inductor, common mode choke inductor test

■ Super impact protection

■ Power on state lock button;

■ Empty fixture judgment

■ Data logging function

■ Screen capture function

■ Interface function, timing, trigger delay, etc. are more complete

Applications

■ Passive components:

Evaluation of Impedance Parameters for Capacitors, Inductors,Cores, Resistors, piezoelectric devices, Transformers, Chip Components, and Network Components

■ Other components:

Impedance evaluation of printed circuit boards, relays,switches, cables, batteries, etc.
