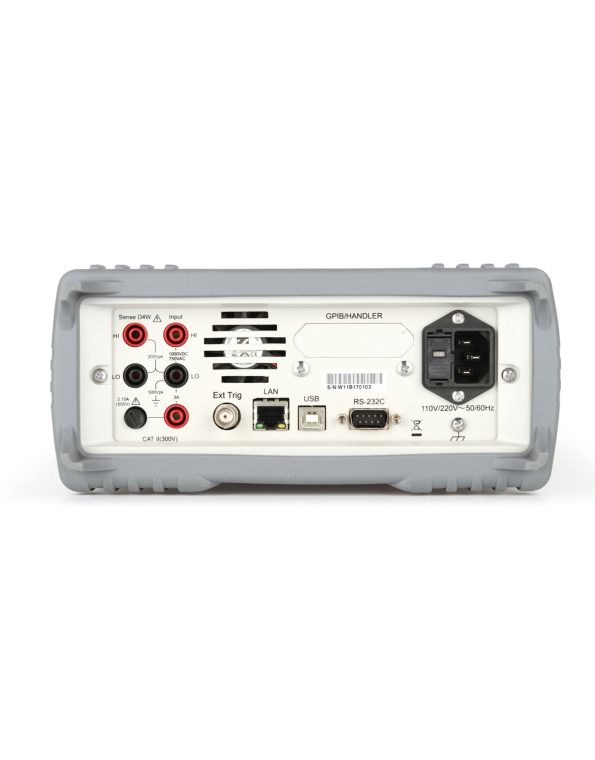

CVMS1953 Digit Multimeter
CVMS1953
5 1/2 Digit
Max Reading 1200000
4.3″ LCD Display
Capacitance test.
Features
■ 4.3-inch LCD color display, Chinese and English menu
■ 6 1/2 bit 1199999 digits reading (TH1963)
■ 5 1/2 digit 119999 digits reading (TH1953)
■ Test speed up to 1000 / s
■ Small size, easy to shelve
■ Histogram, bar graph, trend chart display
■ AC low frequency signal can be tested down to 3Hz
■ Capacitance test function
■ Up to 5V diode test voltage
■ Stores data up to 10,000
■ Fast Chinese and English help
Application
■ Production line workbench
■ Maintenance workbench
■ Teaching laboratory
■ Automated test equipment
Specifications
| Display | 4.3-inch LCD color display | |||
| Display Digits | CVMS1953 | 119999 digits reading | ||
| Measurement Parameters | DC voltage, AC voltage, DC current, AC current, DC resistance, capacitance, frequency, breakover, diode, temperature | |||
| Display Mode | Direct reading, histogram, bargraph, trendchart | |||
| Measurement Speed | Up to 1000 times/s | |||
| Math Function | Reset function, Min/Max/Average/Standard deviation, dB, dBm | |||
| Common Features | Range | Auto/Manual | ||
| Trigger Mode | LOCAL: AUTO/SINGLE/EXT REMOTE: IMMEDIATE/BUS/EXT |
|||
| Reading Hold | Yes | |||
| Limit Measurement | HI, Lo and IN(PASS), with sound beep | |||
| Technical Index | Uncertainty: ±(%of reading + %of range), TCAL=25°C | |||
| Parameters | Range / Test Range | Frequency | Highest annual accuracy TCAL ±5℃ |
Highest temperature coefficient/℃ |
| DC Voltage | 100.000mV – 1000.00V | 0.010+0.005 | 0.0005+0.0001 | |
| True RMS AC Voltage | 100.000mV – 750.000V | 3-5Hz | 1.00+0.03 | 0.100+0.003 |
| 5-10Hz | 0.38+0.03 | 0.035+0.003 | ||
| 10Hz-20kHz | 0.10+0.03 | 0.005+0.003 | ||
| 20-50kHz | 0.15+0.05 | 0.011+0.005 | ||
| 50-100kHz | 0.63+0.08 | 0.060+0.008 | ||
| 100-300kHz | 4.00+0.50 | 0.200+0.020 | ||
| DC Resistance | 10Ω – 100MΩ Test current: 10mA – 500nA |
0.030+0.004 | 0.0006+0.0001 | |
| DC Current | 100uA – 100mA | 0.050+0.008 | 0.0020+0.0005 | |
| 1A | 0.100+0.010 | 0.0050+0.0010 | ||
| 3A | 0.200+0.020 | 0.0050+0.0020 | ||
| 10A | 0.200+0.010 | 0.0050+0.0010 | ||
| AC Current | 100μA – 1A | 3kHz-5kHz | 0.20+0.04 | 0.015+0.006 |
| 5kHz-10kHz | 0.20+0.04 | 0.030+0.006 | ||
| 3A | 3Hz-5kHz | 0.25+0.04 | 0.015+0.006 | |
| 5kHz-10kHz | 0.25+0.04 | 0.030+0.006 | ||
| 10A | 3Hz-5kHz | 0.3+0.04 | 0.015+0.006 | |
| 5kHz-10kHz | 0.3+0.04 | 0.030+0.006 | ||
| Frequency | 3Hz-10Hz | 0.1 | 0.0002 | |
| 10Hz-100Hz | 0.03 | 0.0002 | ||
| 100Hz-1MHz | 0.01 | 0.0002 | ||
| Square wave | 0.01 | 0.0002 | ||
| Diode | 5V, Test current: 1mA | 0.020+0.030 | 0.0010+0.0020 | |
| Breakover | 1kΩ, Test current: 1mA | 0.030+0.030 | 0.0010+0.0020 | |
| Capacitance | 1.0000nF | 1.0+0.5 | 0.02 | |
| 10.000nF-1.0000mF | 0.5+0.1 | 0.02 | ||
| 10.000mF | 1.0+0.5 | 0.02 | ||
| Temperature | PT100 (DIN/IEC751) | ±0.05°C | ||
| 5kΩ Thermistor | ±0.10°C | |||
<div style=”font-family: Arial,sans-serif; width: 100%;”>
<h2 style=”color: #e85d04; font-size: 32px; margin: 0 0 20px; font-weight: bold;”>Accessories</h2>
<h3 style=”color: #e85d04; font-size: 24px; margin: 25px 0 15px;”>Standard</h3>
<table style=”width: 100%; border-collapse: collapse; border: 2px solid #f15a24; font-size: 16px; line-height: 1.5;”>
<tbody>
<tr>
<th style=”border: 2px solid #f15a24; padding: 12px; text-align: left;”>Accessories Name</th>
<th style=”border: 2px solid #f15a24; padding: 12px; text-align: left;”>Model</th>
<th style=”border: 2px solid #f15a24; padding: 12px; text-align: left;”>Image</th>
</tr>
<tr>
<td style=”border: 2px solid #f15a24; padding: 12px;”>USB Cable</td>
<td style=”border: 2px solid #f15a24; padding: 12px;”>CVMS26017</td>
<td style=”border: 2px solid #f15a24; padding: 12px; text-align: center;”><img style=”max-width: 180px; height: auto; display: block; margin: auto;” src=”https://omo-oss-image.thefastimg.com/portal-saas/pg2024082817315145060/cms/image/0a1d218e-b725-4baa-aed0-2984850a6fb0.jpg” alt=”USB Cable” /></td>
</tr>
<tr>
<td style=”border: 2px solid #f15a24; padding: 12px;”>Multimeter Test Cable</td>
<td style=”border: 2px solid #f15a24; padding: 12px;”>CVMS26036</td>
<td style=”border: 2px solid #f15a24; padding: 12px; text-align: center;”><img style=”max-width: 180px; height: auto; display: block; margin: auto;” src=”https://omo-oss-image.thefastimg.com/portal-saas/pg2024082817315145060/cms/image/5b2ca1c5-2000-41a3-8748-f92b5e4b59e4.jpg” alt=”Multimeter Test Cable” /></td>
</tr>
</tbody>
</table>
<h3 style=”color: #e85d04; font-size: 24px; margin: 35px 0 15px;”>Optional</h3>
<table style=”width: 100%; border-collapse: collapse; border: 2px solid #f15a24; font-size: 16px; line-height: 1.5;”>
<tbody>
<tr>
<th style=”border: 2px solid #f15a24; padding: 12px; text-align: left;”>Accessories Name</th>
<th style=”border: 2px solid #f15a24; padding: 12px; text-align: left;”>Model</th>
<th style=”border: 2px solid #f15a24; padding: 12px; text-align: left;”>Image</th>
</tr>
<tr>
<td style=”border: 2px solid #f15a24; padding: 12px;”>Four Terminal Test Line</td>
<td style=”border: 2px solid #f15a24; padding: 12px;”>CVMS26039</td>
<td style=”border: 2px solid #f15a24; padding: 12px; text-align: center;”><img style=”max-width: 180px; height: auto; display: block; margin: auto;” src=”https://omo-oss-image.thefastimg.com/portal-saas/pg2024082817315145060/cms/image/9ef2090a-dc04-475b-9844-7de47f529ba5.jpg” alt=”Four Terminal Test Line” /></td>
</tr>
</tbody>
</table>
</div>
