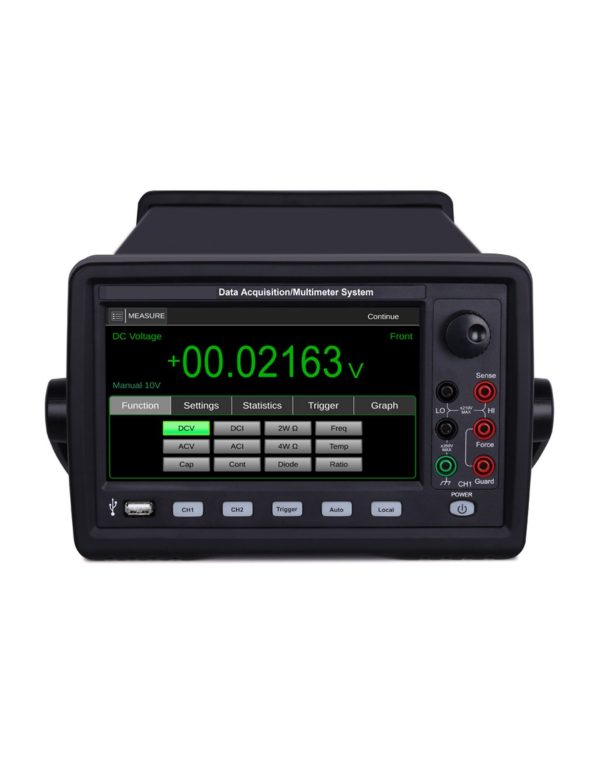

CVMS2554 Digit Multimeter

Features
■ 7-inch color capacitive touch screen, 800×480 resolution

■ Linux operating system

■ 5-slot host, standard 6 1/2 multimeter board

■ Single machine supports up to 160 channels, single channel cost is extremely low

■ 6 1/2 Multimeter (DMM) board supports DCV, DCI, ACV, ACI, 2WR, 4WR, cycle, frequency, temperature

■ Temperature acquisition supports thermocouples, thermistors and RTDs

■ 0.0035% DC voltage (DCV) measurement accuracy

■ 0.0100% basic resistance measurement accuracy

■ Scanning speed

CVMS2554-01: Basic board, 10CH (4-wire)/20CH (2-wire), 90CH/s

CVMS2554-02: Basic board, 20CH (4-wire)/40CH (2-wire), 90CH/s

■ USB port for data direct storage

■ Standard SCPI command set

Application
■ Industrial

Motor, transformer, magnetic core, etc. temperature rise evaluation Resistance sintering furnace, new energy battery, charging pile, automobile motor, LED lamp, chip temperature test.

■ Agriculture

Temperature monitoring of vegetable greenhouses, fruit greenhouses, seed refrigerators, etc.

■ Chemical industry

Temperature monitoring of reaction furnace, production equipment, etc.

■ Animal husbandry

Temperature monitoring of breeding greenhouses, pens, food preservation, seafood warehouses, etc.

■ Medicine

Temperature monitoring of wards, examination rooms, drug storage rooms, sperm banks, ambulances, etc.
