CVMS2683 Series

Features

■ Test voltage range: 1-1000V(TH2683A),1-500V(TH2683B)

■ Insulation resistance test range: 100KΩ-10TΩ

■ Insulation resistance, leakage current dual display

■ 24-bits, 4.3-inch and 4-wire touch LCD screen

■ LCD resolution: 480*272

■ Zero clearing function

■ Contact detection function for capacitive components

■ Fast test: 30ms

■ Programmable sequence test mode

■ 6 ranges, manual or auto range mode

■ 4-bin comparison function: 3 bins for PASS, 1 bin for FAIL

■ 20 setup files can be stored in the internal memory,support U-disk

■ Measurement data can be stored on U-disk

■ Automatically upgrade firmware by a disk

■ Selectable Chinese and English operation interfaces

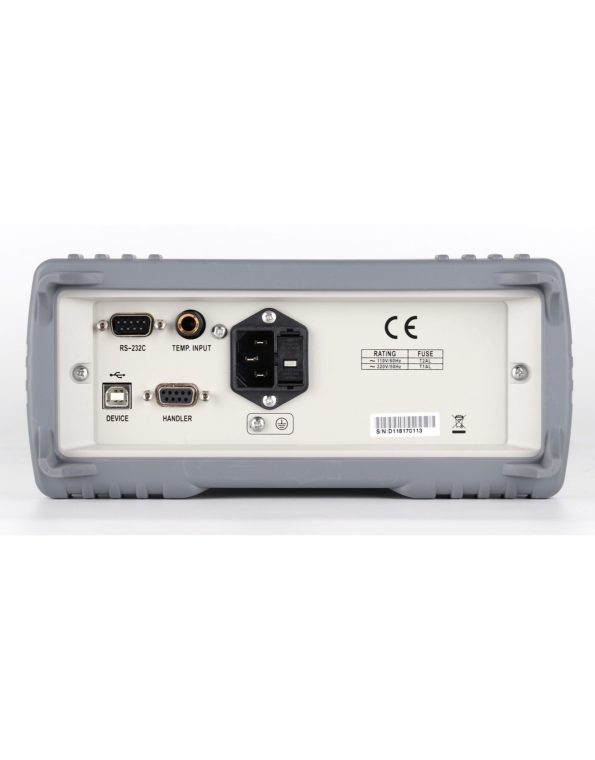

■ Handler interface realizes on-line operation

■ Achieve remote control by RS232C and USB Device interface

■ Footswitch trigger function

Brief Introduction

■ With touch, color LCD screen and unique insulation resistance/leakage current dual test function, CVMS2683A/CVMS2683B insulation resistance meter is an intelligent measurement instrument that is used for rapid measurements on insulating properties of electronic parts and components (especially the capacitance), dielectric material, equipments, wires, cables, etc.

CVMS2683A/CVMS2683B is provided with sorting output and external single pulse signal input interface, making it easy for pipeline operation. The quipped communication interface can achieve the off-site operations of all functions of the instrument through microcomputer. The instrument has a powerful anti-jamming capability, which makes the measurement more reliable.
