CVMS2692
CVMS2692
Test Voltage: 25V-1000V
Test Resistance Range: 10KΩ-100GΩ
Specially designed for Battery test
Features

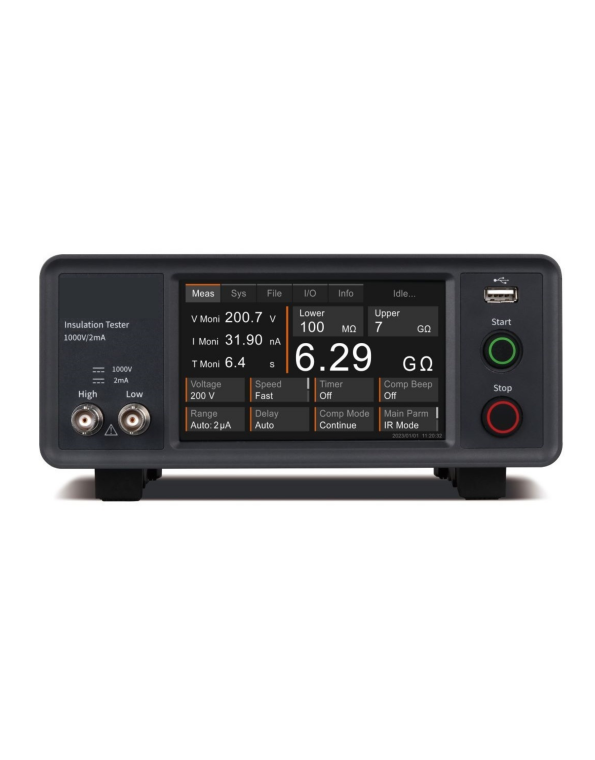

■ 5-inch capacitive touch screen, 800 x 480 resolution
■ Up to1000V adjustable test voltage, maximum 2.4mA test current
■ 10kΩ-100GΩ resistance test range
■ Fastest single test about 50ms
■ Resistance and current can be sorted and evaluated
■ Four-terminal contact test function
■ Short circuit test function (battery micro short circuit test)
■ 16 test files for quick switching between different test conditions

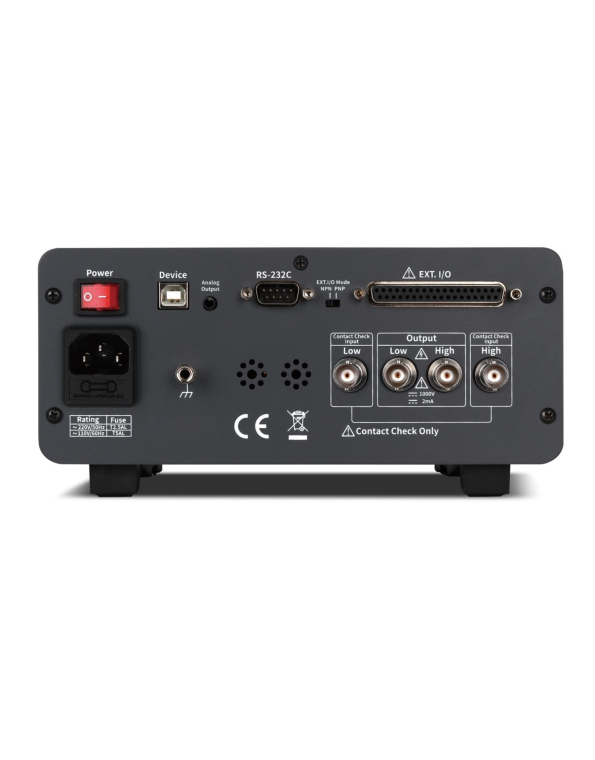

■ Interface: USB DEVICE, RS232C, EXT. I/O, Analog Output, USB-HOST
Application
■ Material Characterization Test
Semiconductors, nanomaterials, polymer materials, dielectric materials, electrochemical materials, ferroelectric materials, graphene, ceramics,
biomaterials, rubber, thin films, metals, organic materials, etc.
■ Leakage current and insulation resistance testing of electronic components
Capacitors, resistors, diodes, transistors, sensors, TFT and CNT types, optoelectronic devices, nano devices, solar cells, switches, relays, etc.
■ New Energy Batteries
Battery cell micro-short test, insulation resistance test
I-V characterization of semiconductors and other devices
Specifications
| Models | CVMS2692 |
|---|---|
| Display | Monitor 5-inch capacitive touch screen, with Chinese and English language user interface |
| Measurement Resolution | 3 ¾ |
| Resistance Measurement | Measurement Range: 10kΩ – 100GΩ |
| Measurement Accuracy | I > 100nA: ±2% reading 10nA < I ≤ 100nA: ±5% reading 1nA < I ≤ 10nA: ±25% reading |
| Display Resolution | R < 1GΩ: 3 ¾ digit 1GΩ ≤ R < 10GΩ: 2 decimal places R ≥ 10GΩ: 1 decimal place |
| Voltage Output | Setting Range: 25V – 1000V Setting Resolution: 1V Output Accuracy: 1%set voltage ±1V Reading Accuracy: 1%set voltage ±1V Display Resolution: 25V ≤ set voltage < 40V: 0.01V 40V ≤ set voltage < 400V: 0.1V 400V ≤ set voltage ≤ 1000V: 1V |
| Range | 2mA / 200μA / 20μA / 2μA |
| Current Measurement | Test Range: 220μA – 2.4mA / 22μA – 220μA / 2.2μA – 22μA / 0 – 2.2μA |
| Display Resolution | 3 ¾ Digit |
| Test Speed | Range: 2mA / 200μA / 20μA / 2μA Fast: 30-50ms / 80ms Medium: 200ms Slow: 500ms |
| Comparator Functions | Upper and lower resistance limits, upper and lower current limits |
| Ranges | Auto, 2mA, 200μA, 20μA, 2μA |
| Interfaces | RS232C, USB DEVICE, USB HOST, EXT.I/O, Analog |
| Memory Capacity | Up to 16 test files inside the instrument |
| Operating Temperature and Humidity | 0°C – 40°C, less than 80%RH |
| Power Supply | AC: 90V-121V(60Hz) or 198V-242V(50Hz), 50/60Hz |
| Power | 25VA |
Accessories
Standard Accessories
| Accessories Name | Model | Image |
|---|---|---|
| Test Cable at both End | CVMS26004B |  |
| DB37 Connection plug | CVMS2692-1 |
Optional Accessories
| Accessories Name | Model | Image |
|---|---|---|
